Vibration Test System Vibration Shaker Meet ISTA 3A 6AStandards Grms 0.53g 58.72mm
Introduction:
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products. Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
Technical Specifications:

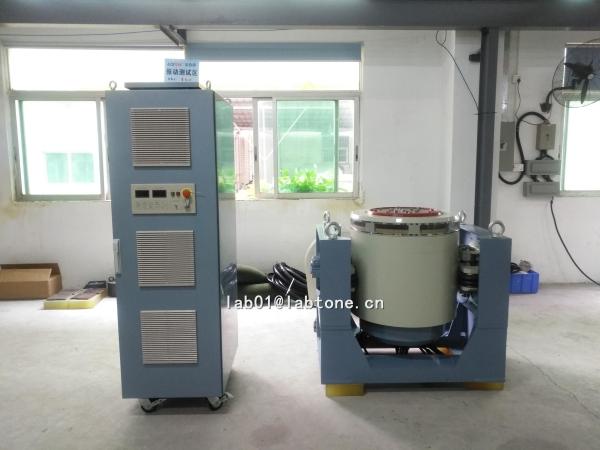

| VG3200-76 Electro-dynamic Vibration Shaker |
| Max. Sine force | 2000Kg.f peak |
| Max. Random force | 2000Kg.f rms |
| Max. Shock force | 4000Kg.f peak |
| Frequency range | 2 - 3000 Hz |
| Max. displacement | 76.2 mm p-p |
| Max. speed | 2m / s |
| Max. acceleration | 100G (980 m/s2) |
| First-order resonance frequency | 3200 Hz±5% |
| Effective load | 300 kg |
| Vibration isolation frequency | 2.5 Hz |
| Diameter of armature | Ф320 mm |
| Mass of armature | 25kg |
| Table screw | 16×M10 |
| Flux leakage | ＜10gauss |
| Allowable eccentric moment | 300N.m |
| Shaker dimensions | 1200 × 870 ×1130 mm |
| Shaker weight | About 1700Kg |
Meet International Standards:
MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Main Applications: - Automotive parts and systems - qualification testing
- Electronic assembly, computer equipment testing
- Avionics and military hardware testing
- Satellite component testing
- Product and package testing
- General stress screening

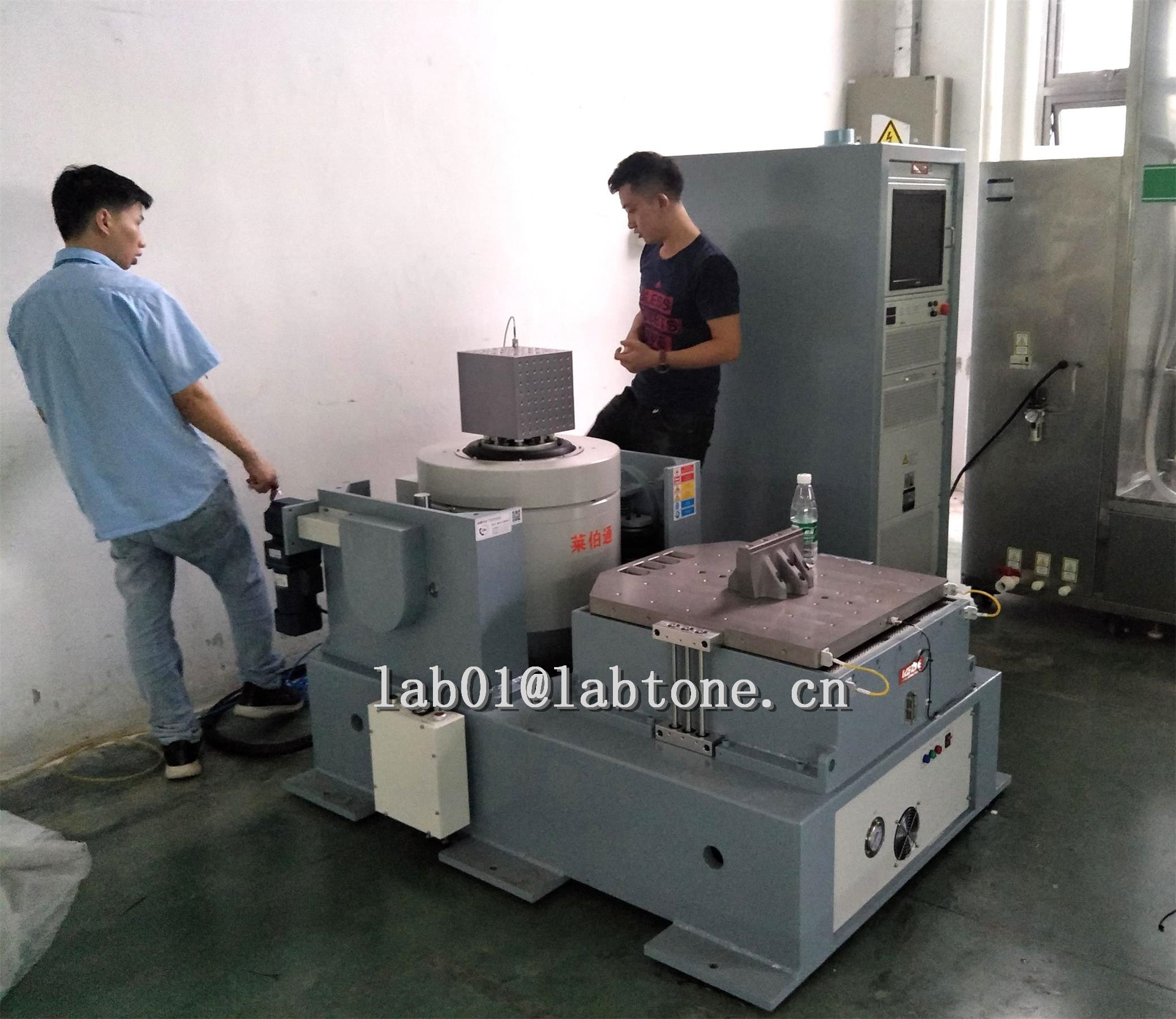

Horizontal oil film slip table
The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.
