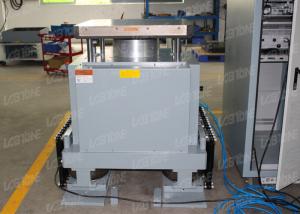

Half Sine Pulse Bump Tester Equipment For 50KG Electric Products Impact Test

  • 1
  • 2

Brand Name : LABTONE

Model Number : SKM500

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 40 working days

Packaging Details : International standard wooden case

Product Name : Bump Tester Equipment

Payload : 50kg

Wave Form : Half sine pulse

Acceleration Range : 5-120 G

Pulse Duration : 6-18ms

Bump Repetition Frequency : 1-120

Drop Height Range : 5-120mm

Max Velocity Variation : 2.2m/s

Table Size : 500*700 mm

Standards : IEC , JIS

Contact Now

Half Sine Pulse Bump Tester Equipment For 50KG Electric Products Impact Test

Product Introduction

Components and other electronic and electrical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the design structure is satisfying or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.

Specifications

Model

SKM500

SKM700

SKM800

SKM1000

Table size(mm)

500*700

700*800

800*800

1000*1000

Payload(kg)

50

100

200

500

Wave form

Half sine pulse

Acceleration range(G)

5-120

5-100

5-100

5-80

Pluse duration(ms)

6--18

Bump repetition frequency

1-120

1-120

1-120

1-80

Drop height range

5-120mm

5-120mm

5-120mm

5-180mm

Max velocity variation

2.2m/s

2.2m/s

2.6m/s

2.8m/s

Machine dimension(mm)

750*660*800

900*900*800

900*960*800

1200*1150*860

Machine weight(kg)

1000

1260

2160

3660

Power & Air supply

AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder

Standards

GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc

Packaging & Shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc

Services

Pre-sales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

Details

Half Sine Pulse Bump Tester Equipment For 50KG Electric Products Impact Test
