Shock Testing Systems Meet UN38.3 and IEC 62133 Perform 150g@6ms, 50g@11ms

  • 1
  • 2
  • 3

Brand Name : LABTONE

Model Number : SKT50

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : T/T

Supply Ability : 15 Sets / Month

Delivery Time : 45 working days

Packaging Details : International wooden case

Table Size : 500*600 （mm）

Max. specimen weight : 50 kg

Max. acceleration : Half sine: 600G

Machine Dimension : 1150*1050*2450 (mm)

Controller : SKC-2

Waveform generator : Half sine wave/final peak saw tooth wave

Contact Now

Shock Testing Systems Meet UN38.3 and IEC 62133 Perform 100g 6ms, 50g 11ms​

Shock Test Systems:

Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pulse or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.

Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.

By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.

Main parameters:

Operating platform 500 × 600 mm
Max. load 50 KG
Peak acceleration

Half sine wave: 20 to 600G
Final peak saw tooth wave: 30 to 100G
Pulse duration

Half sine wave: 1 to 30 ms
Final peak saw tooth wave: 6 to 18ms
Acceleration allowance ≤ 10%
Rate of speed change ≤ 10%
Transverse ratio of table ≤ 10%
Equipment dimensions 1300×1150×2600 mm
Equipment weight 2300 kg
Measuring system
Input channels 2 channels
Sampling frequency 192KHz
Pulse duration 0.5 to 100ms
Max. acceleration 5000G
Communication interface USB2.0
Supportive standard ISO, UN38.3,MIL-STD-810, user defined
Operating system Windows 7/10
System acceleration sensor
Brand

LAB
Model

23108
Output mode Charge type
Sensitivity

10pC/g
Frequency range 0.5 to 12KHz
Acceleration range ±2000G
Operating environment -40 to +160℃
Other information
Power supply AC, three phase, 380V±10% 5KVA
Compressed air 0.5 to 0.8Mpa
Temperature RT~40℃
Humidity 25℃, ＜ 85RH%
Safety

Mean time between failure≥ 5000 hours;
Continuous use of half sine waveform generator≥ 8000 times,
Storage time in clean environment at normal temperature≥ 5 years.
Applicable standards GB2423.5, GJB150.18, GJB360.23,UN38.3,IEC68-2-27, MIL—STD202F, MIL-STD810B, GB/T18287, etc.
Testing standard JG541-2005

Schematic diagram :

Shock Testing Systems Meet UN38.3 and IEC 62133 Perform 150g@6ms, 50g@11ms

Features :

a. Free drop type shock tester using hydraulic lifting and HP fluid braking.
b. Use of pneumatic-hydraulic boosting and strong friction brake to prevent secondary shock braking.
c. Shock measurement device: single-channel data acquisition, simultaneous acceleration data
measurement, storage, report printing, data callback, database management of two channels.
d. Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.
e. Availability for equivalent drop test of packing boxes.


Equipment configuration:

No. Equipment name Model Qty.
1 Shock test system SKT50 1 set
2 Hydraulic lifting mechanism 1 set
3 Controller SKC-2 1 set
4 Shock measurement device 1 set
5 Sensor 1PCS
6 Control computer 1 set
7 Waveform generator Half sine wave/final peak saw tooth wave 1 set
8 Safety device Audible and visual alarm 1 set
9 Attached accessories Tools, clamps/instructions, installation disc, etc. 1 set

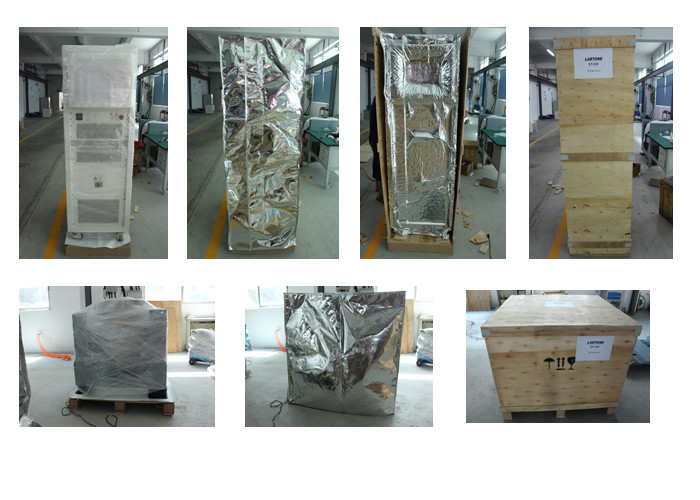

Export Package:
