1-2500Hz Vibration Test Systems For UN38.3 Battery And Package Testing Meet IEC 62133 Standard

Product Categories
Labtone Test Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1-2500Hz Vibration Test Systems For UN38.3 Battery And Package Testing Meet IEC 62133 Standard

Brand Name : LABTONE

Model Number : EV250

Certification : CE / ISO

Place of Origin : Dongguang, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, L/C, D/A

Supply Ability : 15 Sets / Month

Delivery Time : 45 Working Days

Packaging Details : Plywood Case with Vacuum Packing

Product Name : Vibration Test Systems

Max Sine Force : 50KN

Max Displacement : 50.8mmp-p

Max. Acceleration : 100G

Max. Velocity : 200cm/s

Max Load : 1000kg

Frequency Range : 2-2500Hz

Power Supply : 380V 50Hz

Contact Now

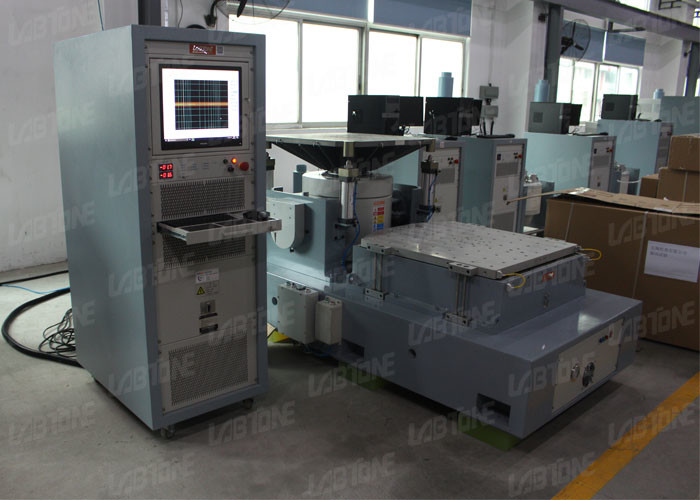

1-2500Hz Vibration Test Systems For UN38.3 Battery And Package Testing Meet IEC 62133 Standard

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.


Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.


Specifications: EV210-EV250

Model EV210 EV220 EV232 EV240 EV250
Vibration Generator VG1000/50 VG2000/50 VG3200/50 VG4000/50 VG5000/50
Frequency(Hz) 2-3000 2-2500 2-2500 2-2500 2-2500
Max Exiting Force(kg.f) 1000 2000 3200 4000 5000
Max. Displacement (mmp-p) 50.8 50.8 50.8 50.8 50.8
Max. Acceleration(g) 100 100 100 100 100
Max. Velocity(cm/s) 200 200 200 200 200
Payload(kg) 300 400 500 800 1000
Armature Mass(kg) 10 20 30 40 50
Armature Diameter(mm) φ240 φ320 φ400 φ400 φ450
Cooling Method Forced Air Cooling
Shaker Weight(kg) 1100 1600 2000 2500 3500
Shaker Dimension L*W*H(MM) 845*685*840 1200*870*1100 1400*900*1100 1400*980*1100 1600*1120*1340
Power Amplifier Amp12k Amp22k Amp35k Amp50k Amp60k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 350 500 550 600 800
Power Amplifier Dimension L*W*H(MM) 880*590*1275 880*590*1275 800*550*1920 800*550*1920 800*550*1920
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 25 35 45 64 85

Features:

  • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Perfect performance on amplitude variation.
  • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
  • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.

Our Services

Pre-Sales Service

1)Technical consultation: test method, laboratory planning and suggestion.

2)Equipment selection: selection scheme, FAQ.

3)Product testing scheme.

4)Customer communication and progress report.

After-Sales Service

1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

3)Technical support: special paid services are provided according to customer’s needs.

Packaging

1-2500Hz Vibration Test Systems For UN38.3 Battery And Package Testing Meet IEC 62133 Standard

1-2500Hz Vibration Test Systems For UN38.3 Battery And Package Testing Meet IEC 62133 Standard

Details:

1-2500Hz Vibration Test Systems For UN38.3 Battery And Package Testing Meet IEC 62133 Standard

1-2500Hz Vibration Test Systems For UN38.3 Battery And Package Testing Meet IEC 62133 Standard

1-2500Hz Vibration Test Systems For UN38.3 Battery And Package Testing Meet IEC 62133 Standard
